Used Calender rolls / rolling mills for sale (8)

Condition: used, Year of construction: 1973, Continuously overhauled/upgraded Lsdpexcnf Dsfx Ah Esru

Year of construction: 1985, condition: used, Working width 2000 mm Roller width 2200 mm pressure 50 t Pressure line 230 N / mm Number of rollers 3 Stück Upper roll 280 dia Roller covering Stahl, verchromt Heating - upper roll Thermoöl Middle roll NIPCO-Walze , 500 mm dia Roller covering Polyamidmantel Lower roll Stahl dia diameter of lower rolls 280 mm Roller covering Schreiner-Gravur Clouth speed max.100 m/min Weight 26 to dimensions of the machine ca. 6,0 x 8,0 x 3,3 m 3-roll calender with 2 steel rolls, upper steel roll smooth - chrome-plated, lower steel roll with carpenter engraving, heating with thermal oil (via heat exchanger), middle roll as NIPCO roll, this can be rotated by 180°, for use in the upper or lower roll nip, infeed with working platform, triple profile spreader holders Ledjw Df Ubspfx Ah Ejru + metal detector E&L, outfeed with hydraulic MENZEL Sochor winder,

Year of construction: 1974, condition: ready for operation (used), A Schwabenthan laboratory rolling mill is available. Roll width: 110mm, roll length: 350mm, roll diameter: 110mm, roll speed: 27rpm, bottom-roll axle distance: approx. 1200mm. On-site inspection is possible. Lsdpfx Ahowmqw Te Ejru

Year of construction: 1985, operating hours: 25,000 h, condition: used, functionality: fully functional, machine/vehicle number: -, Fully operational flame lamination machine, in daily use on one or two shifts until December 2019, and regularly upgraded for electrical, mechanical, and methane gas systems. This is an Italian construction machine from the early 1980s. The machine dimensions are 4 meters by 11 meters. It can handle rolls up to 1.80 meters in height. Lamination thickness ranges from 2 mm to 35 mm. Both cylinder speeds, burner position, and flame intensity are adjustable. We typically laminate EPE or PU foams together or with fabrics, synthetic leather, or cotton fabric. Lodpfx Aewyxpkeh Eeru

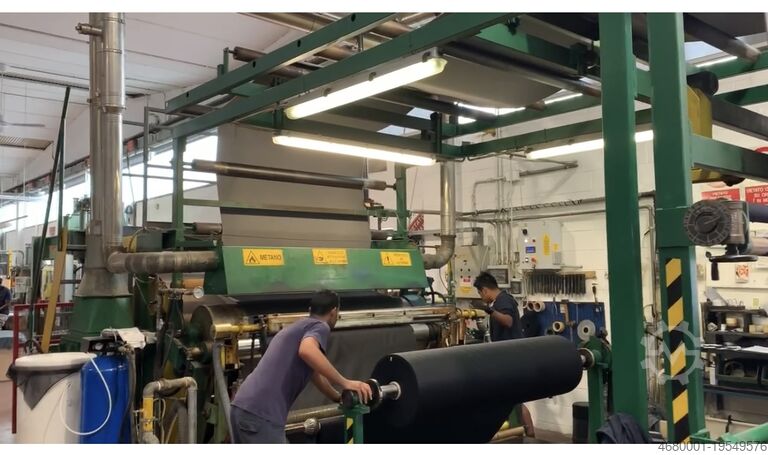

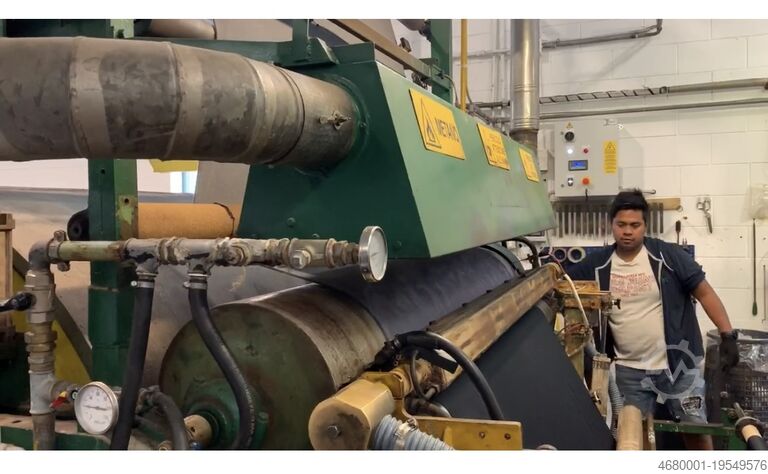

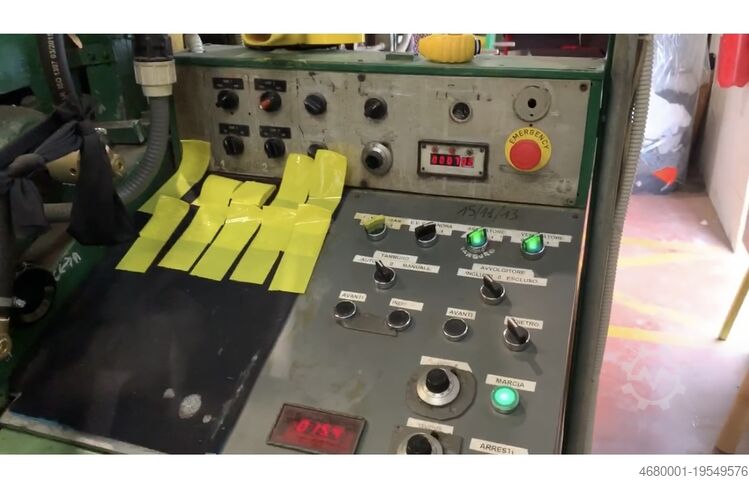

Condition: used, Year of construction: 1971, Documented modifications / upgrades: Year Modification / Upgrade 1971 Installation of four-roll calender 18" × 54" (Comerio) 1971 Safety enhancements for CTI – SQ 1986 Manual gauge monitoring system 1990 Width measuring unit 1993 Upgrade to eliminate internal blistering 1994 Modification of calender for single turn 2001 Upgrade MMI-Gum-Calender Y2000 2009 Cassette winders (2) incl. control cabinets 2009 Material width measuring system (SQ1) 2010 Overhaul gum calender (SQ-Cal.) 2012 Control system adaptation feed extruder SQ-calender 2012 Mechanical upgrade SQ-calender 2012 Gauge measurement system SQ-calender Lrodpfsxf Ap Nex Ah Eeu 2013 Overhaul of cooling line for gum calender (SQ-Cal.) 2014 Optimization of spool winder at SQ-calender 2018 New calender rolls Control system: Various modernizations (MMI 2001, control upgrade 2012) Technical data: Roll diameter 18", roll length 54" Maintenance / condition: Regular overhauls and modernizations documented 1971–2018 Accessories / options: Cassette winders, width measuring unit, cooling line, spool winder, gauge & width measuring systems

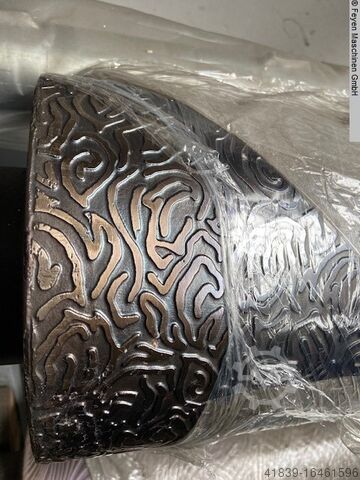

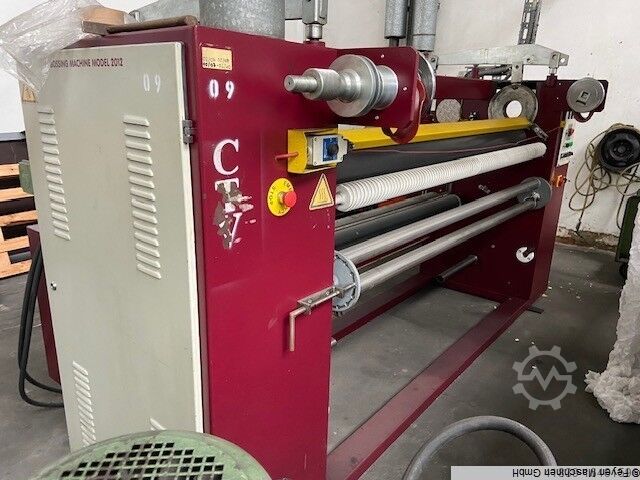

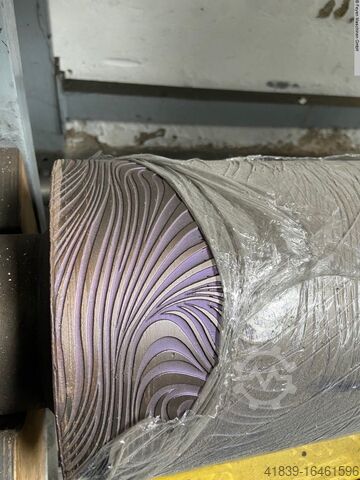

Year of construction: 2002, condition: used, Working widths 1800 mm roll surface width 2000 mm Number of rollers 2 St./ea Upper roll Gravur oder Stahl dia diameter of upper rolls 210 mm Heating - upper roll Elektro Lower roll Gummiert dia diameter of lower rolls 300 mm Roller covering - soft rubber 95 °Sh weight 2 t dimensions of the machine ca. 3,0 x 1,5 x 1,8 m Embossing Calender with exchangeable top roll, The following spare rollers are included with the machine: • 1 x steel roll, chrome plated • 3 x engraving rolls, various designs • 1 x spare bottom roll - rubber coated On the outlet side there is a small batch - rising batch winder ATTENION: the electrical control unit is defective, still needs to be replaced, therefore SPECIAL PRICE for self-repair Lodpfjt An E Rsx Ah Ejru

Year of construction: 2004, condition: ready for operation (used), A high-temperature rolling machine for glass fiber reinforced compounds is available. 1) Large roller Comerio Ercole, year of construction: 1970, working width: 1500mm, roller diameter: 600mm, roller gap: electrically adjustable, lubrication: circulating oil lubrication. 2) Small roller Meccaniche Moderne, year of construction: 1966, working width: 800mm, roller diameter: 400mm, lubrication: circulating oil lubrication. 3) Horizontal mixer, volume: 2.5m³. 4) Big bag frame with crane. 5) 2x gravimetric dosing scales with control. 6) Conveyor belts and spiral balancing conveyor. 7) Condux HM 45/60 LA hammer mill (lined) with a 1000 mm vibrating screen. 8) 2x Lauda heaters. Including cement mixer, bucket elevator, silo, bagging scales, glass feed rack and a control cabinet for overall plant control. Documentation available. On-site inspection is possible. Ljdpfjwk Nldsx Ah Ejru

Year of construction: 1959, condition: ready for operation (used), Two rolling mills for thermosetting plastics are available. 1) 2x identical rolling mills Berstorff (Krauss Maffei), year of construction: 1959, drive wheel renewal: 2000, working width: 1200mm, roll diameter: 400mm. 2) Big bag frame with electric chain hoist. 3) Suction blower. 4) Engelsmann screening plant. 5) Glass fiber dosing devices. 6) Conveying units, control system and screws. 7) Krauss Maffei test laboratory roller for color determination. Without shredding units. Documentation available. On-site inspection is possible. Lrsdpfx Ahowk Nlko Eju
